PROTON FLEXIBLE SOLUTIONS

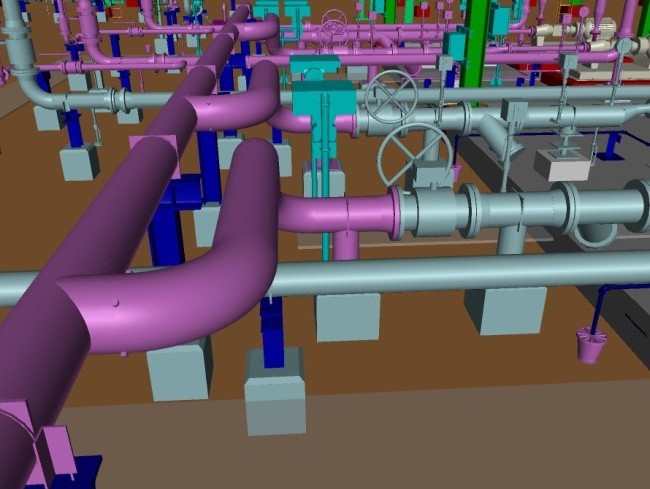

3D Modelling on Latest Softwares
- PDMS
- E3D
- PDS
- SP3D
- Autoplant
- Cadworks
- Tekla
Our team of qualified engineers and draftsmen deliver high-quality multidisciplinary plant modelling services.

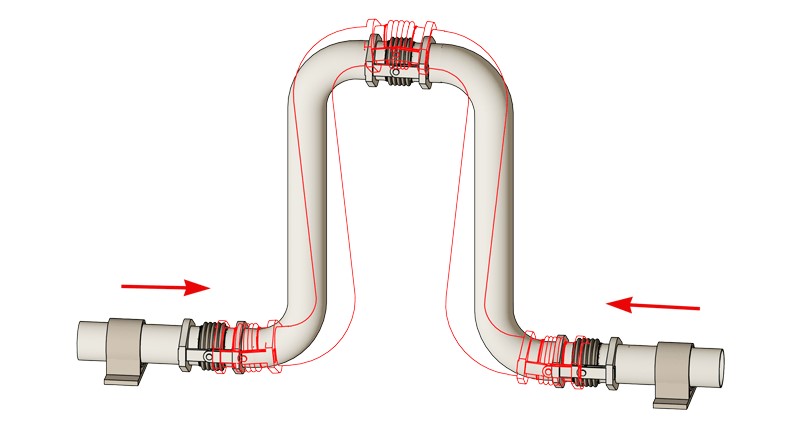

Stress Analysis of Piping System
- Static Stress Analysis
- Dynamic Stress Analysis
- Finite element Analysis
Useful for the support structure of piping under static and vibrating conditions.
Civil & Structure Design
Our focus is on design, detailing and analysis of structural foundations across manufacturing/massive industrial infrastructure and process facilities.
- STAAD.Pro design
- Xsteel Design
- Tekla Modelling

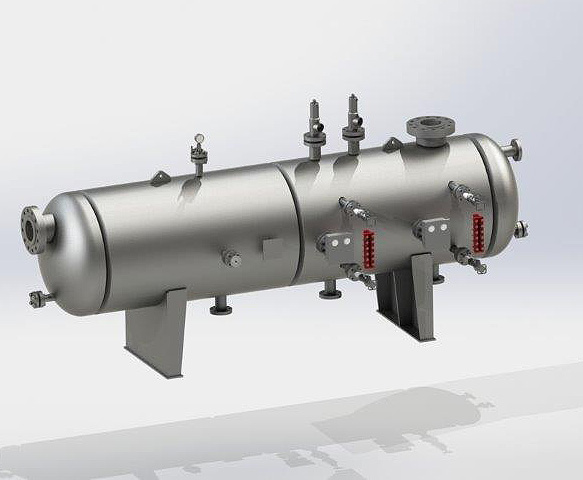

Static Equipment Design
- Tanks
- Bullets
- Pressure Vessels
- Columns
- Reactors
- Separation/Knockout Drums
- Separators
Some Common Rotary Equipment Include
- Pumps
- Compressors
- Agitators
- Turbines
AutoCAD Design & Drafting Services
- P&ID and PFD
- Isometrics and System Isometrics
- Plot Plan and Unit Plot Plans
- Piping GAD
- Static Equipment Fabrication drawings
- Civil/Structural drawings e.g. Foundation, Beams Reinforcement Detail, Beam layout plan, Column Reinforcement details.
- Electrical & Instrumentation drawings e.g. Earthing and lightning layout, Lighting and small power layout, cable tray layout, Preparation of Single Line Diagram.
P&ID Drafting with Intelligent Tools
- AVEVA Diagrams
- AVEVA P&ID
- SPPID
Admin Support
- Project Set-up
- Creation
- Cataloguing
- Drawing Set-up
- Troubleshooting
